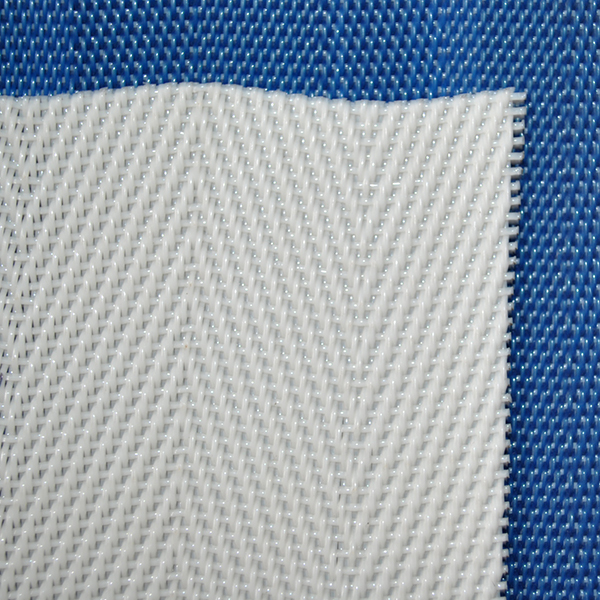

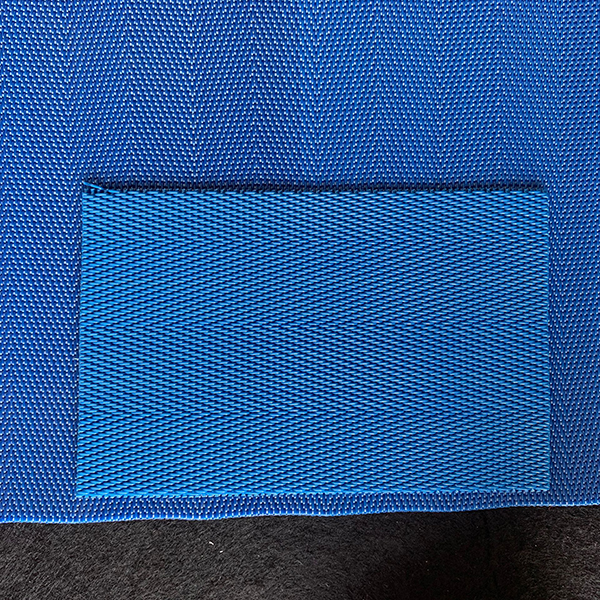

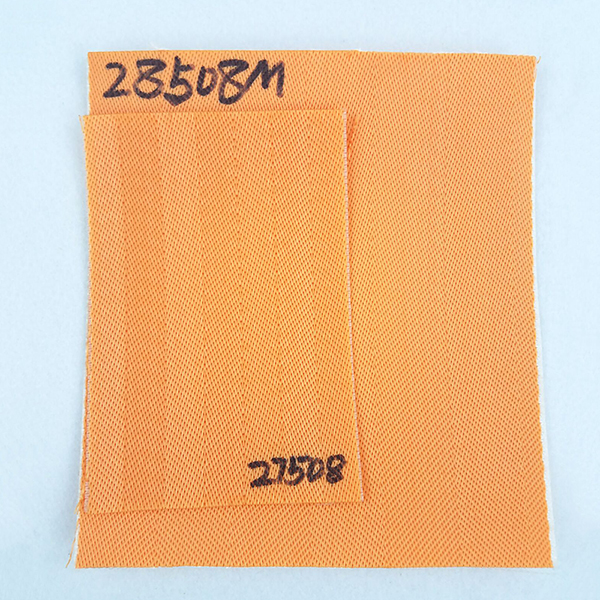

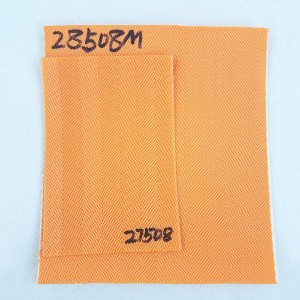

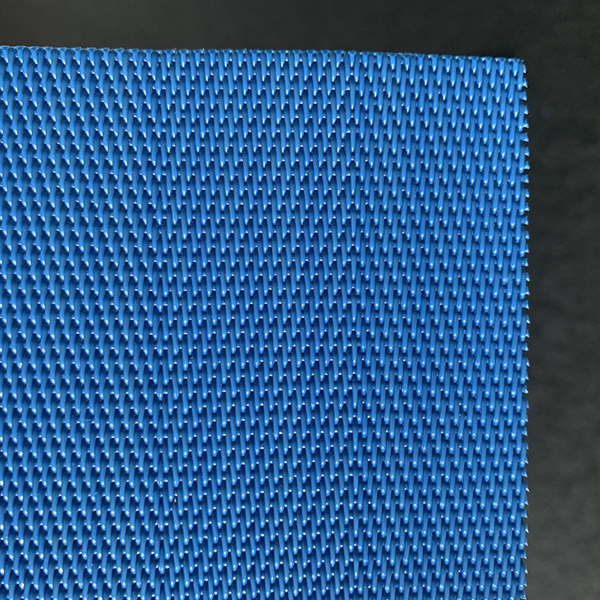

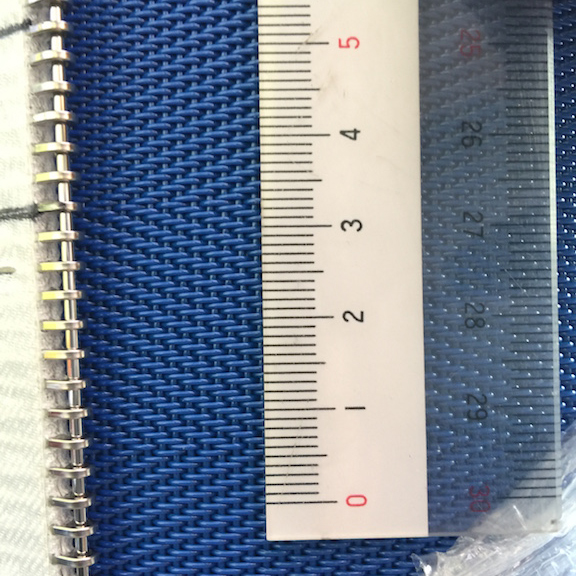

Polyester sludge dewatering belt

Short Description:

The sludge dewatering net is also called polyester press filter screen, which is suitable for press filter industry such as municipal sludge, paper mill pulp press, juice press, smelter and mine tailings dry discharge.
The sludge dewatering net has the characteristics of breathable and water-impermeable materials (sludge), strong acid and alkali resistance,high temperature resistance 180 degrees.
The mesh design makes the filter cake easy to peel and easy to clean. Mainly used with belt filter press, rubber belt vacuum filter, horizontal belt vacuum filter.

网子型号Model of Fabrics 线材直径

Thread Dia.

(mm)

密度(根/厘米)

Density
Root/10cm

强度Strength

(N/cm)

透气度Air Permeability

(m3/m2h)

经线Warp 纬线Weft 经线 纬线 网面
16903 0.70 0.90 16 5.33 ≥2200 7894±500
22903 0.50 0.90 22 5.33 ≥2000 6800±500
26808 0.50 0.80 27 8.5 ≥2100 5120±500
15905 0.90 0.90 17 4.8 ≥4500 6741±500
151105 0.90 1.1 16 4.8 ≥5000 6749±500
121104 0.90 1.10 12 3.8 ≥3600 8610±500
