Short Description:

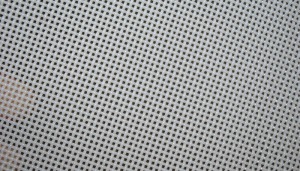

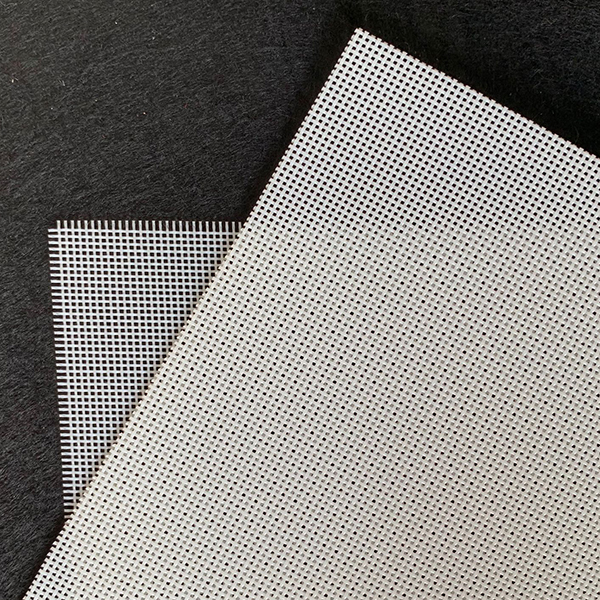

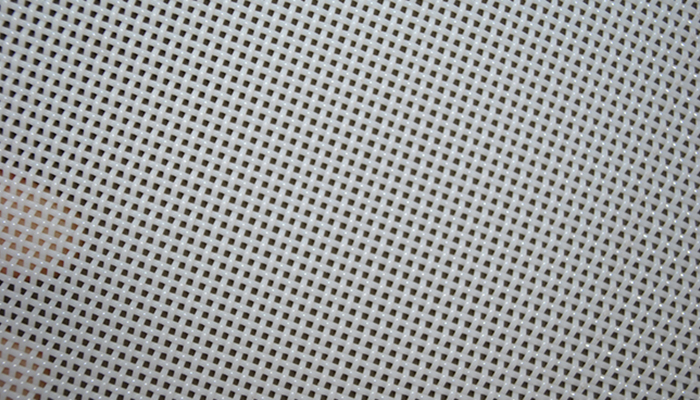

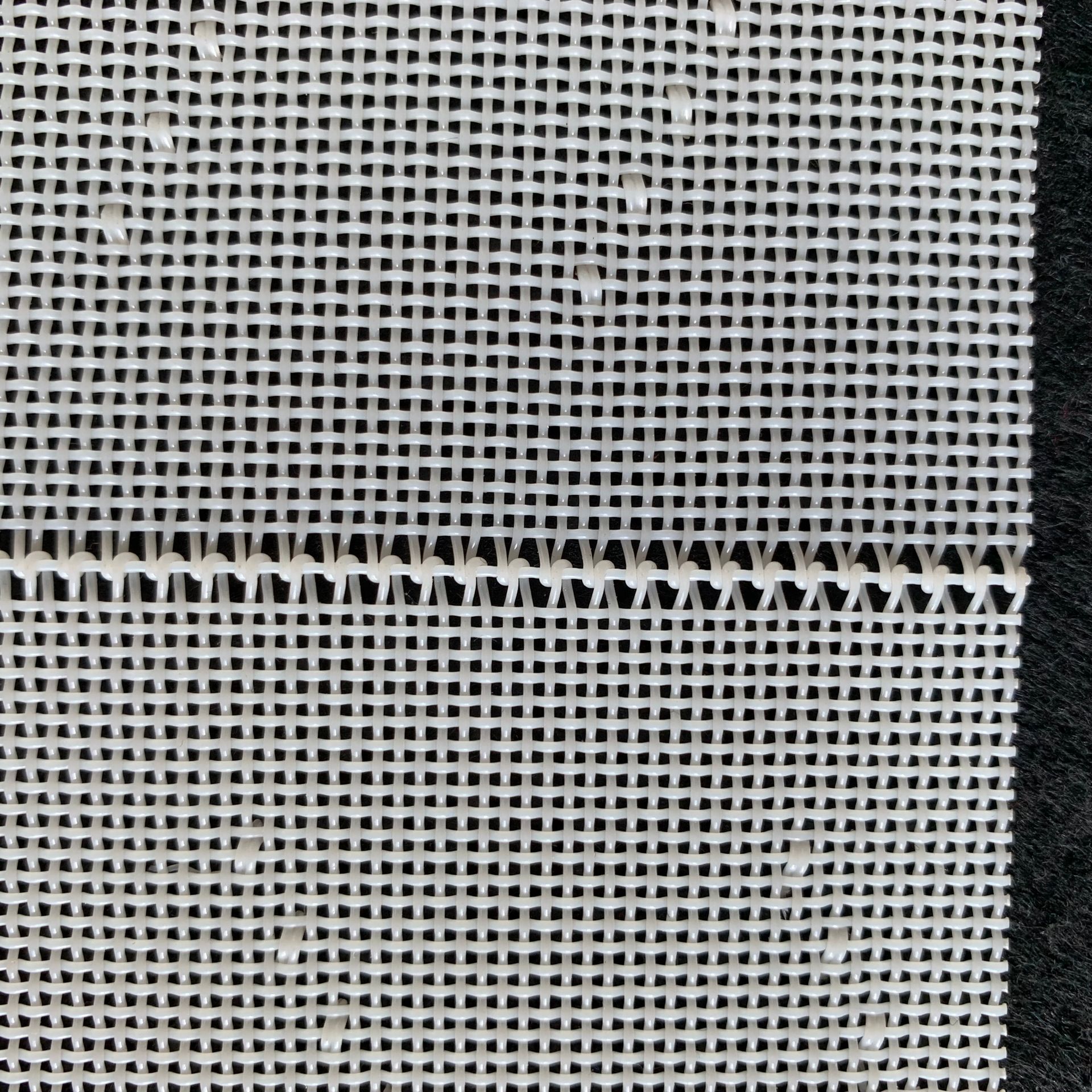

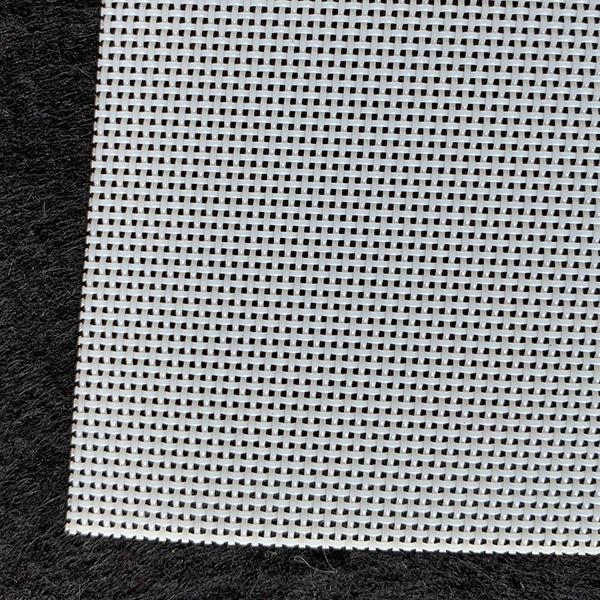

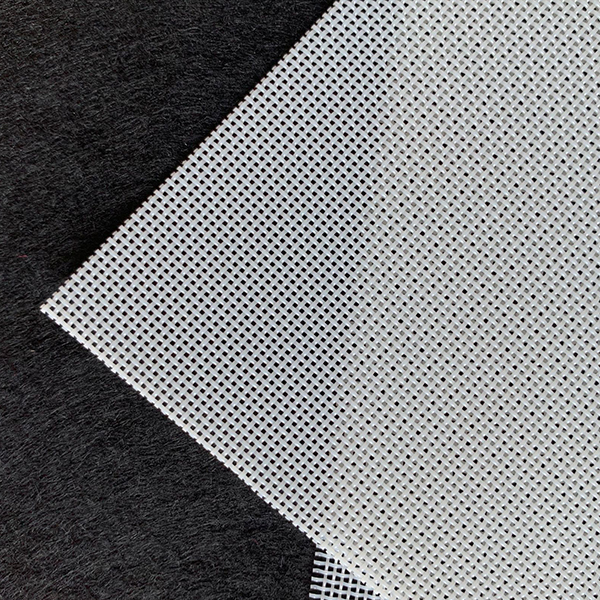

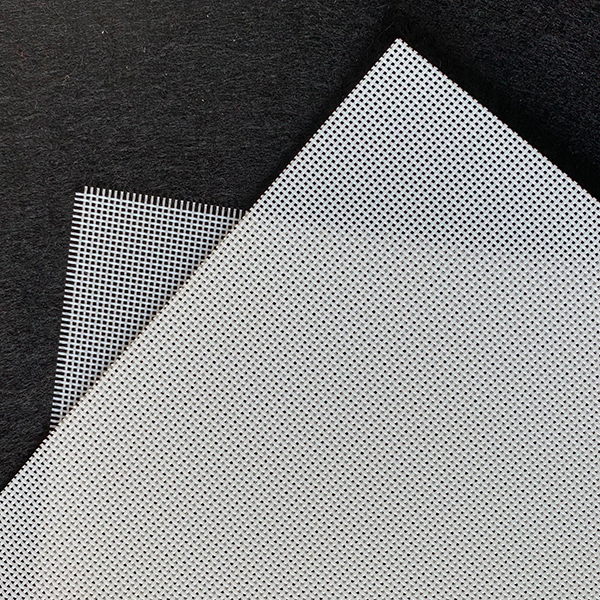

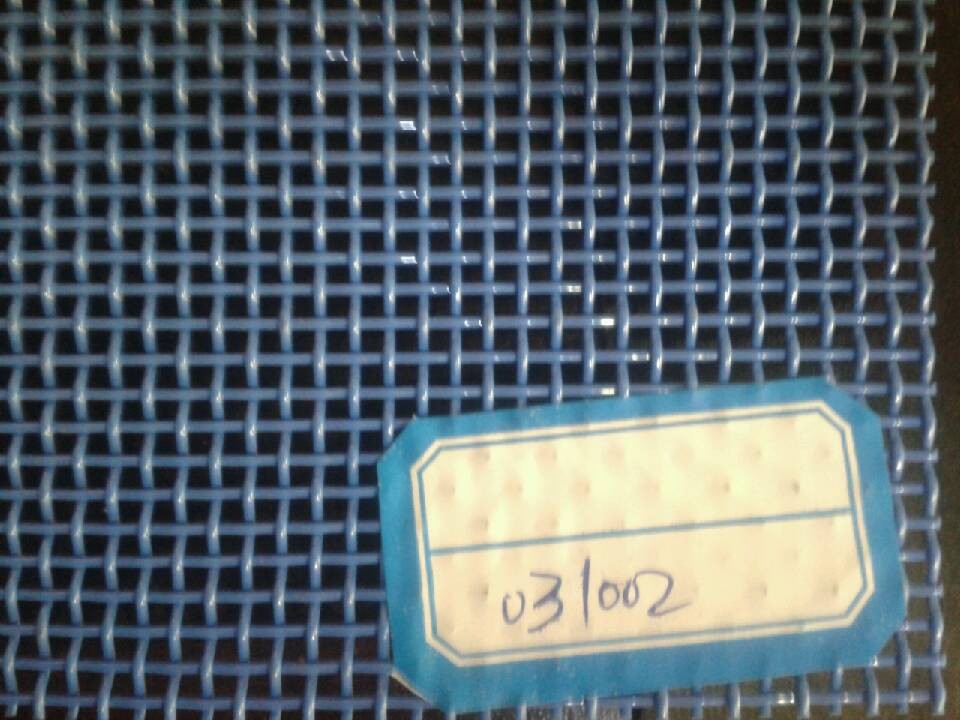

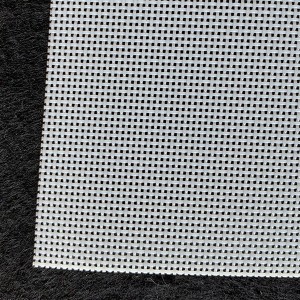

The second and third heald flat woven polyester mesh series products are mainly used in the paper industry to produce pulp board, packaging paper and liner board, but also in the production of high density board, food drying, feed drying, fruit and vegetable conveying drying Sludge dehydrator, concentration and other filtration industries.

网子型号Model of Fabrics	线材直径 Thread Dia. (mm)		密度（根/厘米）Density Root/10cm		强度Strength (N/cm)	透气度Air Permeability (m3/m2h)
	经线	纬线	经线	纬线	网面
03902	0.90	0.90	3.14	3.14	≥1650	20000±500
05802	0.80	0.80	5.1	5.3	≥1700	15840±500
06802	0.80	0.80	6.6	6.5	≥1650	11600±500
06702/Blue/White	0.70	0.70	6.3	6.3	≥1800	11000±500
07802/Blue/White	0.80	0.80	7.8	7	≥1800	7000±500
09502	0.50	0.50	8.85	8.46	≥1850	10100±500
12502	0.50	0.50	13.5	8.5	≥1900	6500±500
09452	0.45	0.45	10	8.6	≥1900	15570±500
08603	0.50	0.60	9.4	9	≥1950	9000±500
07903	0.80	0.80	7.48	6.69	≥1950	6400±500
122702	0.25	0.27	11.8	10.6	≥2000	5600±500
163502	0.40	0.35	16	13	≥2100	5500±500

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month
